AsianScientist (Feb. 9, 2015) – Researchers have created a tubular battery that uses a ceramic membrane to separate CO2 and CO, facilitating the development of high density batteries that use carbon as a fuel source. Their research has been published in Angewandte Chemie.
Although batteries are ubiquitously used in portable electronic devices, they are still far from being highly efficient power supplies. Recurrent issues are poor energy densities and safety, both of which particularly concern the widely used lithium-ion batteries. Professor Shao Zongping and colleagues from Nanjing Tech University and Curtin University chose a different approach by developing electrochemical power supplies on the basis of solid-oxide fuel cells (SOFC) using solid carbon as a fuel.
However, one of the major drawbacks of carbon-fueled battery cells is the intrinsic presence of CO2, which impedes CO oxidation and therefore lowers the energy density of the cell. To overcome this challenge, Shao and colleagues developed a novel dual-phase ion-conducting ceramic membrane that is absolutely gas-tight but highly permeable for CO2.

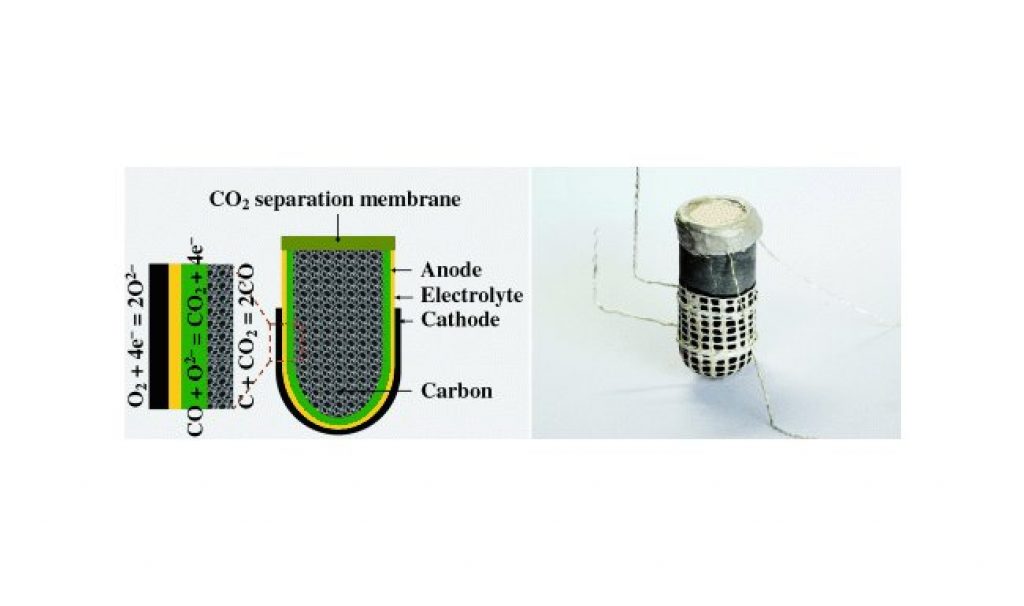

Their novel carbon–air battery has its fuel container—catalytically activated carbon—integrated by anode support. Its most prominent feature, however, is the addition of a ceramic membrane that has been specially designed to allow efficient CO2 separation and thus increase fuel utilization efficiency.
In the battery, CO2 is formed at the electrode and then reacts with the carbon fuel to form gaseous CO, which can diffuse quickly to the electrodes and thus enhance the reaction rates. However, to obtain high energy densities, CO2 has to be separated from CO. Ceramic membranes can provide CO2 permeability through high carbonate conductivity, but, as the authors explain, it is the oxygen ion conducting phase, rather than the carbonate conductivity, which is critical for efficient CO2 permeation.
Therefore, the researchers selected a samarium-containing cerium oxide (SDC) material, which is characterized by its high ionic conductivity. Sintering formed a porous SDC scaffold with fused particles to provide efficient oxygen ion conducting paths. The void spaces were then completely filled with molten carbonate to form a densified SDC–carbonate dual-phase membrane. This novel membrane not only proved to be perfectly gas-tight, but also provided a temperature-dependent excellent CO2 permeation flux much higher than the values reported for similar membranes.
“Such an improvement is likely due to the much improved densification of the membrane fabricated by using the technique reported here”, the researchers point out.
Moreover, at the operating temperatures for SOFC applications, which are as high as 850°C, attractive power densities and open-circuit voltages can be obtained. Applications may include portable energy supplies that have to be run at high temperatures.
The article can be found at: Yang et al. (2015) A Carbon–Air Battery for High Power Generation.
—–
Source: Wiley.
